Horizontal High Speed Cartoning Machine
It has been designed for high speed packaging of various products. Operation speeds up to 130 packages per minute can be achieved with this machine, depending on the choice of box and product. It is a compact cartoning machine, especially for mass production, offering solutions for a wide range of industrial sectors, with its highly functional horizontal layout and favourable features such as quick change mechanisms, rotary picking-forming apparatus and large capacity carton magazine. Its hygienic stainless steel structure makes it also suitable for food and pharmaceuticals packaging applications.

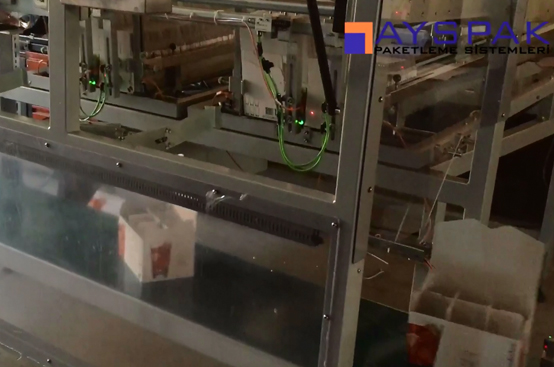

To give a brief description of the machine, the knock-down flat carton cases are placed in the magazine unit of the machine while the products onto the product conveyor by means of a robotic or mechanical loading system. The machine takes one folded carton from the magazine, erects it and puts onto the conveyor to prepare for filling. At the same time the products are automatically grouped and positioned on the feed line and then top-loaded into the carton box. At the oncoming stations down the line, the flaps of the carton are automatically sealed as requested and the packaging operation is thus completed.
It is a compact machine conforming to international standards and features energy efficient, ergonomic, robust and well-integrated compatible mechanical units, quality mechanical, electrical and electronic components infrastructure, easy access for maintenance and spare parts replacement, operator comfort and preventive safety measures along with a competitive price. In addition to its basic technical specifications, integration of optional features is also available upon request. It is also possible for the machine to be integrated even with the existing peripherals and third-party equipment for a highly customised packaging lines.
| TECHNICAL SPECIFICATIONS | ||||
| Carton size (mm) |
| Width | Lengt | Heigh |
| Max | 140 | 300 | 175 | |
| Min | 50 | 90 | 35 | |
| MACHINE SPECIFICATIONS | |||
| Machine Dimensions (mm) | Width | Length | Height |
| 1280 | 3600 | 1620 | |
| Packaging Speed (subject to packing material, product and feed rate | Min – Max | 25 - 30 pcs / min | |
| Machine Weight | Approx | ||
| Power supply | 380 V, 50 Hz | ||
| Air supply | 6 bar | ||
| Air consumption | Approx. 100 l/min | ||
| Control system | PLC Touch Screen Control | ||
| Warranty | 2 years | ||
| SAFETY AND WARNING SYSTEMS | |
| Machine Status Indicators | Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction |
| Start-up Safety System | 3 seconds delay at the start-up of the machine, audible and visual warning systems during this period |
| Magazine Warning System | Audible and visual warning system when the material decreases below certain level in the blank magazine |
No-product and no-case detection | Detection system that activates in case of no-box or no-product during filling and discards the product or the box |
| Operator Safety System
| Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger. |
| Machine Breakdown Detection System
| In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices. |
| Air Pressure Warning System
| Audible and visual warning system indicating low air pressure |
