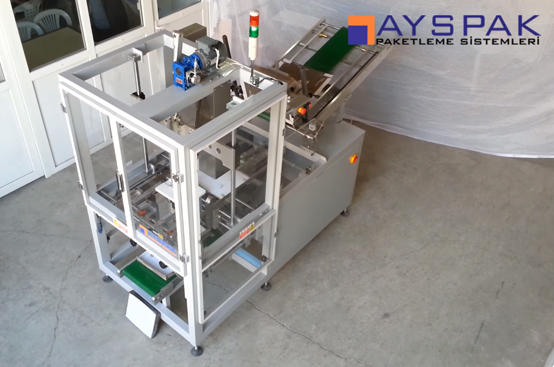

AYSPAK’s Tray Forming Machine
With its specially designed compact structure, is the perfect solution for producing carton trays for packaging. The machine can produce up to 40 trays per minute, depending on the styles of tray, with the hot melt glue application at joints for a strong finish. It is designed to fit your customised needs, in addition to improved safety, durability, productivity and efficiency features. It provides solutions to the specific needs of customers in a wide range of industries including food, pharmaceuticals and cosmetics sectors.

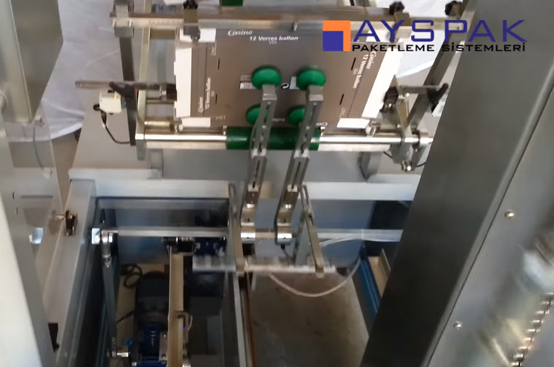

To briefly explain the operation of the machine, the blank cartons are placed in the magazine section of the machine. The machine automatically takes one blank carton from the magazine and puts onto the conveyor transferring it to a mould. A forming head pushes down the blank into the mould where side flaps are folded and joined.
It is a compact machine that stands out among its peers with its competitive price, operator comfort and preventive safety features, with energy efficiency-oriented and ergonomic design, robust, compatible, quality component infrastructure, easy access for maintenance and spare parts replacement. Along with basic technical specifications, the machine can also be equipped with optional features and be integrated to upstream/downstream packaging systems or third-party equipment to configure very special lines. Dimensional changeovers can be completed manually without needing to replace any hardware. Upon request, automatic changeover can be provided. Advanced servo technology provides perfect machine handling with relatively compact electrical hardware.
Continuous Motion System
| TECHNICAL SPECIFICATIONS | ||||
| Carton size (mm) |
| Width | Length | Height |
| Max | 200 | 300 | 130 | |
| Min | 120 | 210 | 100 | |
|
| |||
|
| Width | Length | Height |
| 1280 | 5100 | 2400 | |
| Packaging Speed (subject to packing material, product and feed rate) |
|
| |
| Machine Weight | Approx. | ||
| Power supply | 380 V, 50 Hz | ||
| Air supply | 6 bar | ||
| Air consumption | Approx. 100 l/min | ||
| Control system | PLC Touch Screen Control | ||
| Warranty | 2 years | ||
| SAFETY AND WARNING SYSTEMS | |
| Machine Status Indicators | Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction |
| Start-up Safety System | 3 seconds delay at the start-up of the machine, audible and visual warning systems during this period |
| Magazine Warning System | Audible and visual warning system when the material decreases below certain level in the blank magazine |
| No-product and no-case detection | Detection system that activates in case of no-box or no-product during filling and discards the product or the box |
| Operator Safety System | Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger. |
| Machine Breakdown Detection System | In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices. |
| Air Pressure Warning System | Audible and visual warning system indicating low air pressure |
