It is a specially designed, compact, case erecting machine which can prepare up to 10 cases per minute depending on the format of the case. The machine automatically erects cases from knock-down flat case bundles and making them ready for filling. It is a perfect system for a wide range of products that require various case formats on the same machine. It is designed to fit your specific business needs without compromising efficiency, robustness and safety considerations. Being primarily suitable for food, pharmaceuticals and cosmetics industry, it can easily be adapted to meet the tailored needs of customers from a wide range of industrial sectors.

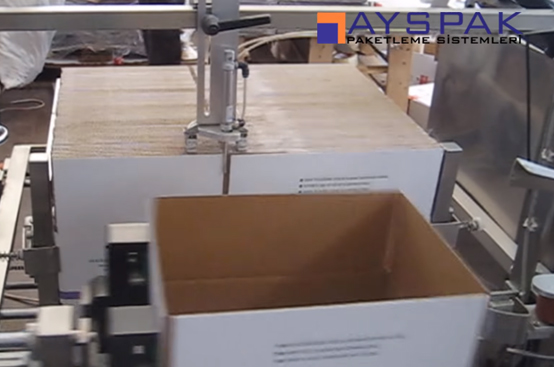

To briefly explain the operation of the machine, knock-down flat cases are placed onto the magazine of the machine by an operator before it is switched on. The machine automatically picks one flat case from the magazine and erects it onto the conveyor. The machine then closes and tape seals the bottom flaps of the case, leaving the top open for filling. An operator manually puts the product into the case, closes the upper flaps and tape seals them and finishes the process. If requested, automatic top flaps closure and sealing system is installed and the machine can be integrated with existing upstream/downstream packing lines.
It is a compact case packaging machine that stands out among the rivals with its competitive price, preventive safety features, energy efficiency, ergonomic design for operator comfort, robust and compatible mechanical parts, quality component infrastructure and easy access for maintenance and spare parts replacement. In addition to its basic technical specifications, integration of optional features is available upon request. It is also possible for the machine to be integrated even with the existing peripherals and third-party equipment for a highly customised packaging lines. Format changeovers can be achieved manually without needing to replace any component of the machine. Optional automatic changeover system can be installed if requested. Using advanced servo technology in all drive systems provides reliable and precise control of the machine.
|
| ||||
| Carton size (mm) |
| Width | Length | Height |
| Max | 850 | 540 | 710 | |
| Min | 360 | 400 | 370 | |
|
| |||
|
| Width | Length | Height |
| 1280 | 5100 | 2400 | |
| Packaging Speed (subject to packing material, product and feed rate) |
|
| |
| Machine Weight | Approx. | ||
| Power supply | 380 V, 50 Hz | ||
| Air supply | 6 bar | ||
| Air consumption | Approx. 100 l/min | ||
| Control system | PLC Touch Screen Control | ||
| Warranty | 2 years | ||
| SAFETY AND WARNING SYSTEMS | |
| Machine Status Indicators | Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction |
| Start-up Safety System | 3 seconds delay at the start-up of the machine, audible and visual warning systems during this period |
| Magazine Warning System | Audible and visual warning system when the material decreases below certain level in the blank magazine |
| No-product and no-case detection | Detection system that activates in case of no-box or no-product during filling and discards the product or the box |
| Operator Safety System | Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger. |
| Machine Breakdown Detection System | In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices. |
| Air Pressure Warning System | Audible and visual warning system indicating low air pressure |
