Fold Wrapping Casing Machine
This machine can perform case packaging of various products. It is a continuous motion, entry level machine for the companies where ease of use, speed and performance are all important. With this machine, operation speeds up to 25 packages per minute can be achieved depending on the choice of box and product. Designed principally for the companies still doing traditional manual cartoning practices, it is a high-performance, reliable, efficient and modular cartoning machine that provides solutions to the most of the specific needs of customers from a wide range of industrial sectors. Moreover, its hygienic stainless steel structure makes this machine also suitable for food and pharmaceuticals packaging applications.

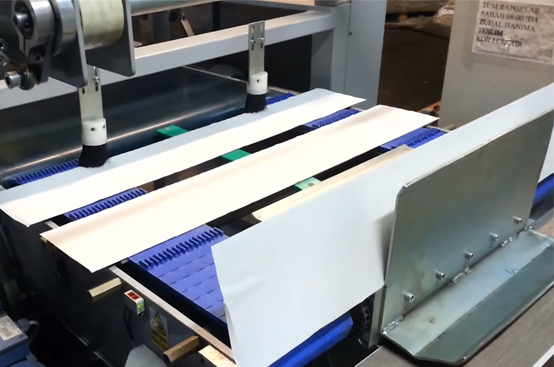

To give a short description of the machine’s operation, the blank cartons/cases are placed in the magazine section of the machine while the products onto the product conveyor by the operator and the machine is started. The machine takes one blank case from the magazine and puts onto the conveyor and erects the sides up, leaving one end open for filling. At the same time the products are automatically grouped and positioned on the feed line and then side-loaded onto the case automatically. At the oncoming stations, the top and side flaps of the case are automatically wrapped and sealed as requested, thus completing the packaging operation.
It is a compact machine conforming to international standards and features energy efficient, ergonomic, robust and well-integrated compatible mechanical units, quality mechanical, electrical and electronic components infrastructure, easy access for maintenance and spare parts replacement, operator comfort and preventive safety measures along with a competitive price. In addition to its basic technical specifications, integration of optional features is also available upon request. It is also possible for the machine to be integrated even with the existing peripherals and third-party equipment for a highly customised packaging lines.
| TECHNICAL SPECIFICATIONS | ||||
| Carton size (mm) |
| Width | Lengt | Heigh |
| Max | 140 | 300 | 175 | |
| Min | 50 | 90 | 35 | |
| MACHINE SPECIFICATIONS | |||
|
| Width | Length | Height |
| 1280 | 3600 | 1620 | |
| Packaging Speed (subject to packing material, product and feed rate) |
|
| |
| Machine Weight | Approx | ||
| Power supply | 380 V, 50 Hz | ||
| Air supply | 6 bar | ||
| Air consumption | Approx. 100 l/min | ||
| Control system | PLC Touch Screen Control | ||
| Warranty | 2 years | ||
| SAFETY AND WARNING SYSTEMS | |
| Machine Status Indicators | Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction |
| Start-up Safety System | 3 seconds delay at the start-up of the machine, audible and visual warning systems during this period |
| Magazine Warning System | Audible and visual warning system when the material decreases below certain level in the blank magazine |
| No-product and no-case detection | Detection system that activates in case of no-box or no-product during filling and discards the product or the box |
| Operator Safety System | Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger. |
| Machine Breakdown Detection System | In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices. |
| Air Pressure Warning System | Audible and visual warning system indicating low air pressure |
