Horizontal Continuous Motion Cartoning Machine
This machine enables direct casing of various products. It is a continuous movement, entry level machine featuring ease of use and reliable performance for applications at medium speeds, all representing the most important criteria expected from a machine. With this machine, a production rate of up to 90 packages per minute can be achieved depending on the choice of carton and product. Designed principally for the companies still doing traditional manual cartoning practices, it is a high-performance, reliable, efficient and modular cartoning machine that provides solutions to the most of the specific needs of customers from a wide range of industrial sectors. Thanks to its hygienic stainless steel structure which makes it particularly suitable also for food and pharmaceutical packaging applications.

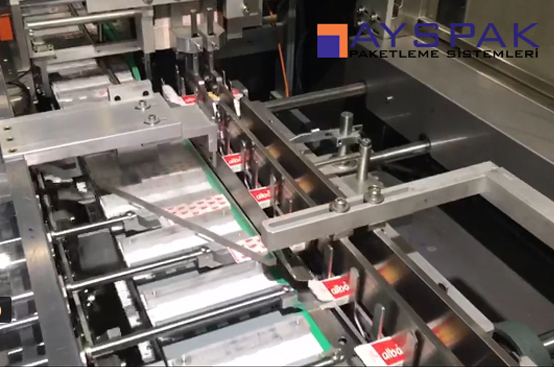

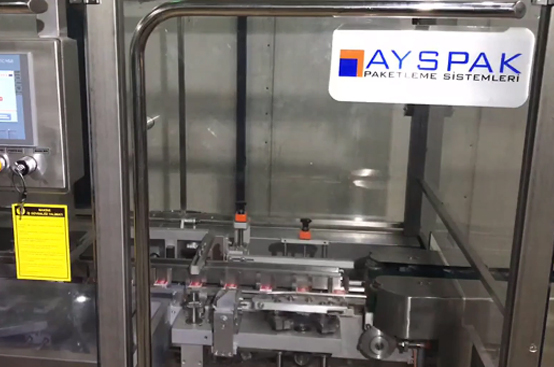

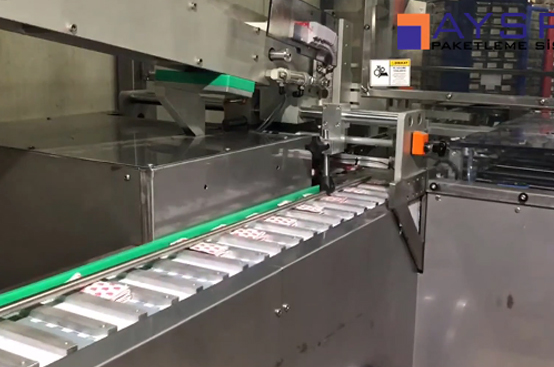

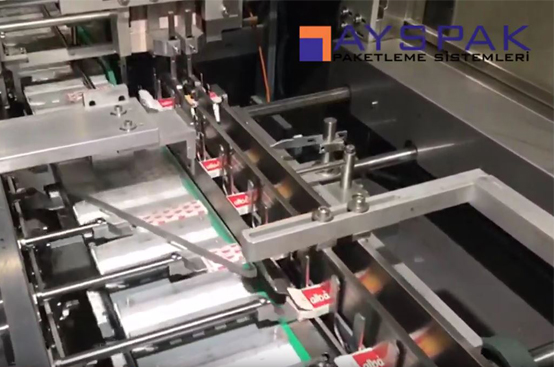

Having done the preliminary adjustments and preparations on the machine, the carton blanks are placed into the magazine of the machine and the products are manually placed onto the feed conveyor by a person and then the machine is started. The machine takes one folded carton from the magazine and erects it to prepare for filling. At the same time the products are automatically positioned on the feed line and then side-loaded into the carton from its open end. At the oncoming stations, the flaps of the carton are automatically sealed as requested, thus finishing the operation.
It is a compact machine conforming to international standards and features energy efficient, ergonomic, robust and well-integrated compatible mechanical units, quality mechanical, electrical and electronic components infrastructure, easy access for maintenance and spare parts replacement, operator comfort and preventive safety measures along with a competitive price. In addition to its basic technical specifications, integration of optional features is also available upon request. It is also possible for the machine to be integrated even with the existing peripherals and third-party equipment for a highly customised packaging lines.
Food / Pharmaceuticals / Cosmetics | TECHNICAL SPECIFICATIONS | ||||
| Carton size (mm) | Width | Length | Height | |
| Max | 140 | 300 | 175 | |
| Min | 50 | 90 | 35 | |
| MACHINE SPECIFICATIONS | |||
|
| Width | Length | Height |
| 1280 | 3600 | 1620 | |
| Packaging Speed (subject to packing material, product and feed rate) |
|
| |
| Machine Weight | Approx. | ||
| Power supply | 380 V, 50 Hz | ||
| Air supply | 6 bar | ||
| Air consumption | Approx. 100 l/min | ||
| Control system | PLC Touch Screen Control | ||
| Warranty | 2 years | ||
| SAFETY AND WARNING SYSTEMS | |
| Machine Status Indicators | Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction |
| Start-up Safety System | 3 seconds delay at the start-up of the machine, audible and visual warning systems during this period |
| Magazine Warning System | Audible and visual warning system when the material decreases below certain level in the blank magazin |
| No-product and no-case detection | Detection system that activates in case of no-box or no-product during filling and discards the product or the box |
| Operator Safety System | Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger |
| Machine Breakdown Detection System | In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices |
| Air Pressure Warning System | Audible and visual warning system indicating low air pressure |
