Intermittent Motion Packaging Machine
Ideal for flexible operations, the machine require manual or mechanical intermittent product feed at relatively slower rates. The machine can produce up to 30 packages per minute depending on the choice of box and product. It is suitable for a wide range of industrial packaging applications, including particularly food, pharmaceuticals and cosmetics sectors, and can be adapted to specific needs of the customers, thus offering customised solutions.

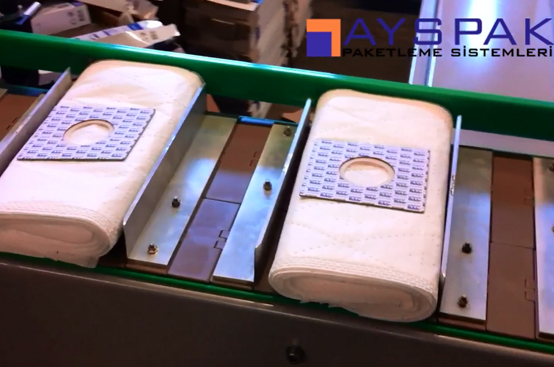

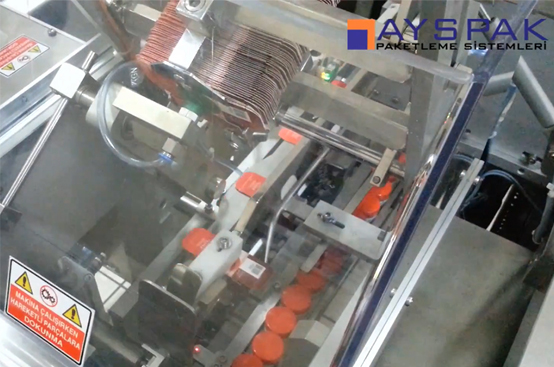

Before starting the machine, knock-down flat cardboard cases are placed into the blank magazine, and the products into the slots on the infeed conveyor of the machine by an operator. Upon starting the machine, a flat case is picked from the magazine, erected and positioned with one side open on the case transfer line, all automatically. Synchronized with this, the product is simultaneously carried in the product line and side-loaded into the case. At the subsequent stations, the flaps of the carton on both sides are closed automatically and sealed as requested (sealing with adhesive tape or hot melt glue application).
It is a compact machine conforming to international standards and features energy efficient, ergonomic, robust and well-integrated compatible mechanical units, quality mechanical, electrical and electronic components infrastructure, easy access for maintenance and spare parts replacement, operator comfort and preventive safety measures along with a competitive price. In addition to its basic technical specifications, integration of optional features is also available upon request. It is also possible for the machine to be integrated even with the existing peripherals and third-party equipment for a highly customised packaging lines.
| TECHNICAL SPECIFICATIONS | ||||
| Carton size (mm) |
| Width | Length | Height |
| Max | 140 | 300 | 175 | |
| Min | 50 | 90 | 35 | |
|
| |||
|
| Width | Length | Height |
| 1280 | 3600 | 1620 | |
| Packaging Speed (subject to packing material, product and feed rate) |
|
| |
| Machine Weight | Approx. | ||
| Power supply | 380 V, 50 Hz | ||
| Air supply | 6 bar | ||
| Air consumption | Approx. 100 l/min | ||

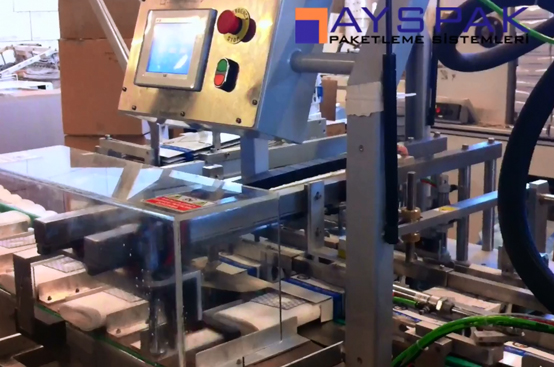

| Control system | PLC Touch Screen Control | ||
| Warranty | 2 years | ||
| SAFETY AND WARNING SYSTEMS | |
| Machine Status Indicators | Red and green warning lights, audible and visual warning system indicating machine start, stop or malfunction |
| Start-up Safety System | 3 seconds delay at the start-up of the machine, audible and visual warning systems during this period |
| Magazine Warning System | Audible and visual warning system when the material decreases below certain level in the blank magazine |
| No-product and no-case detection | Detection system that activates in case of no-box or no-product during filling and discards the product or the box |
| Operator Safety System | Mechanical, as well as software-embedded, preventive safety systems/guards to protect personnel from danger. |
| Machine Breakdown Detection System | In case of breakdown, the system stops the machine, displays warning message on the control panel and activates audible and flashlight warning devices. |
| Air Pressure Warning System | Audible and visual warning system indicating low air pressure |
• Date Coding System
• Labelling System
